Calc Maat G: Location of Gasket Load Reaction tbv C2

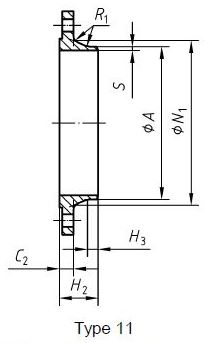

1-EN-1092-1_WNfls_type11_afm

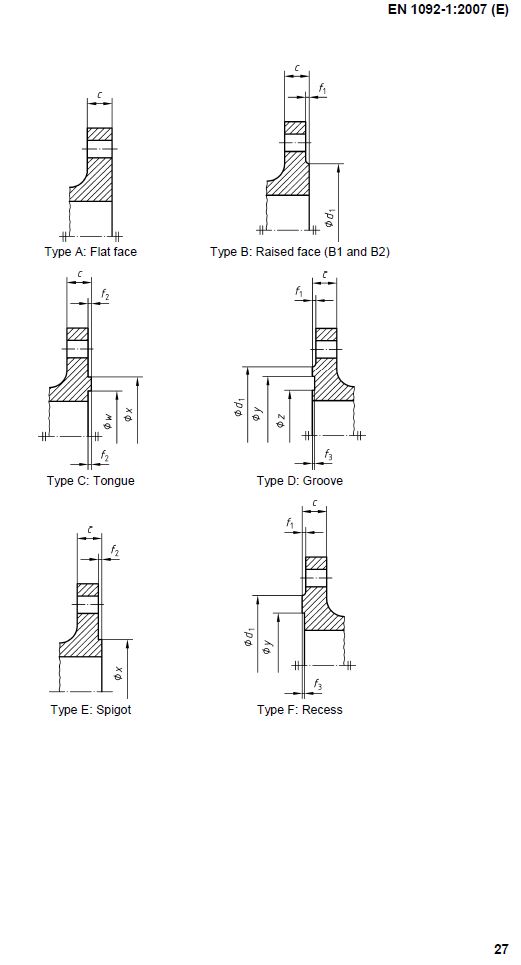

2-EN-1092-1_Facing-Fls-typeB_RaisedFace

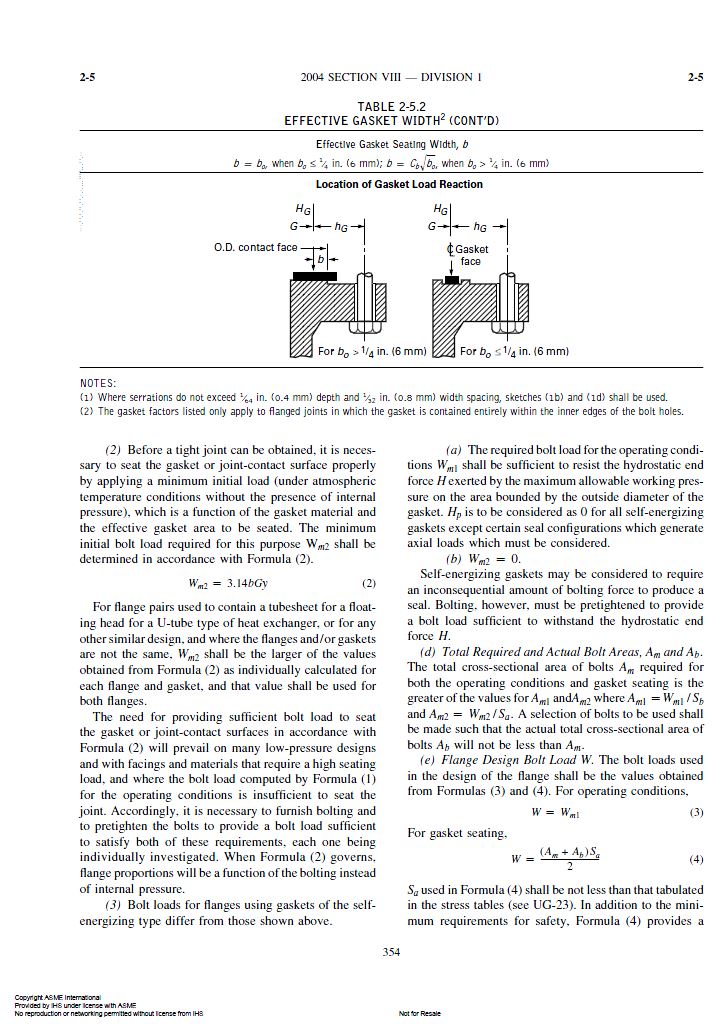

3-MaatG_ASTM2004sectVIIIdiv1-App2

	INPUTS	info
Diameter_flange_facing_d1:	mm	tabel8
Diameter_maat_A	mm	fls-plt fls-dim
Wanddikte_S_flens:	mm	tabel-A1

	OUTPUTS	info
Diameter_Maat-G :	mm

info : EN1092-1 d1 maat
info : ASMEsectVIIIdiv1-App2

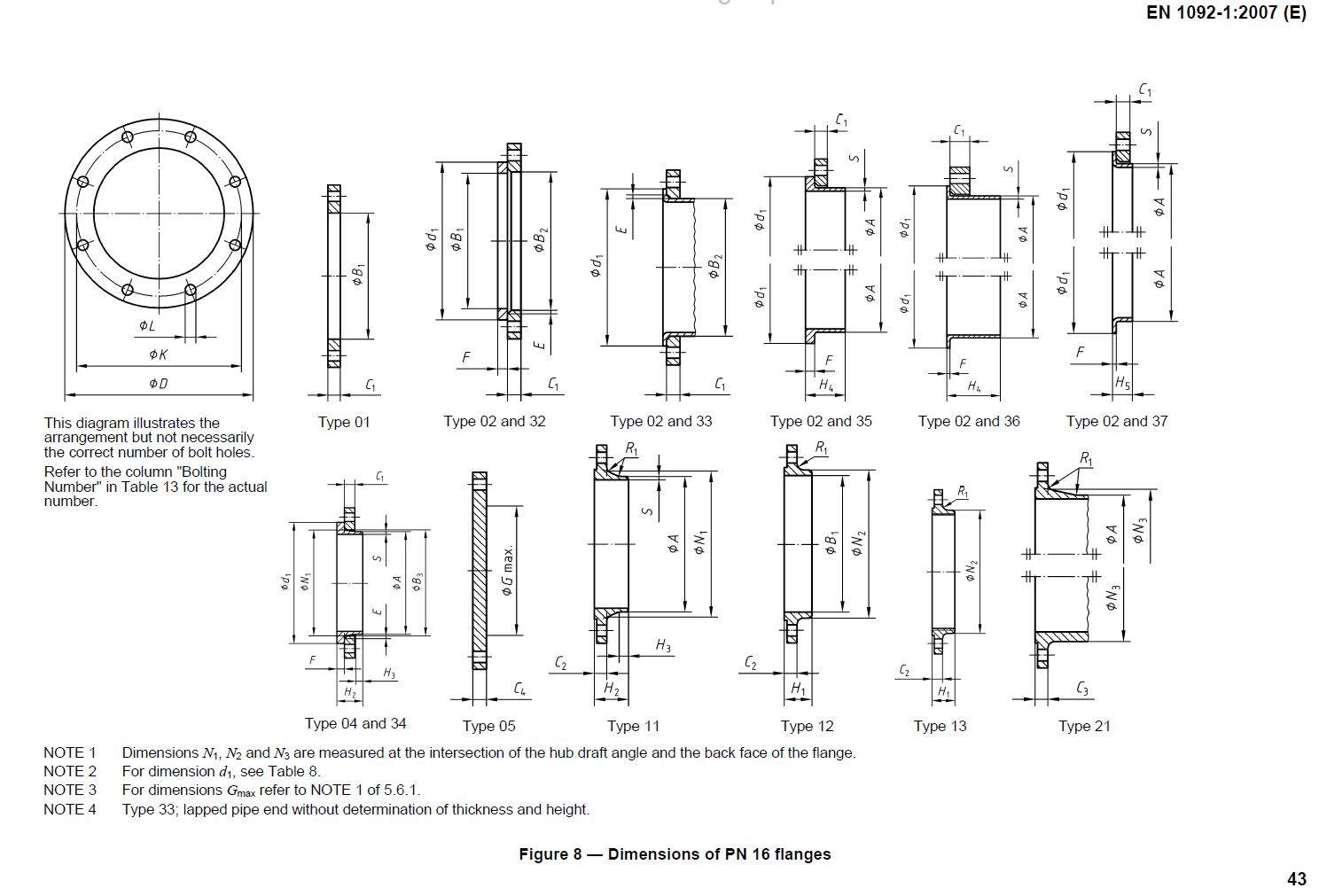

info : EN1092-1 FLS
info : EN1092-1 totaal
