Nozzle Loads according to DSM
EP 3.6.2-1.1.2
INPUTS
K is 1 of 1.25 :
-
Diam Pipe DN :
-
Calculate
OUTPUTS
P :
N
V_L :
N
V_C :
N
M_T :
Nm
M_C :
Nm
M_L :
Nm
Values for
xx.eql file
acc. to the Caesar II:
"Nozzle Lmt Chk"
P :
lbs
V_L :
lbs
V_C :
lbs
M_T :
lb.ft
M_C :
lb.ft
M_L :
lb.ft

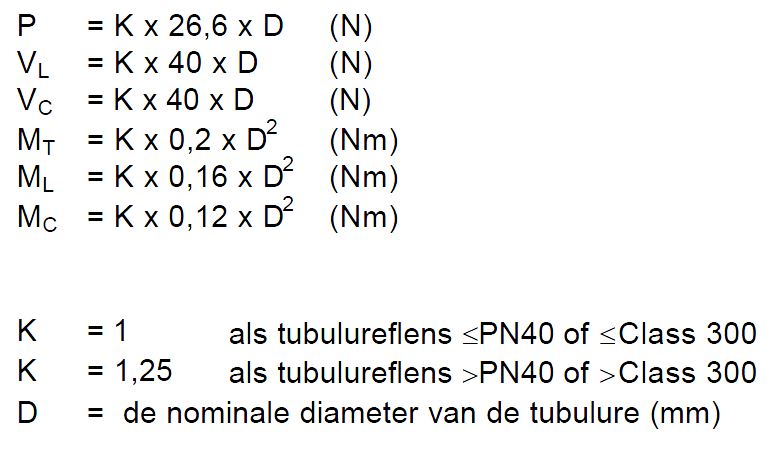

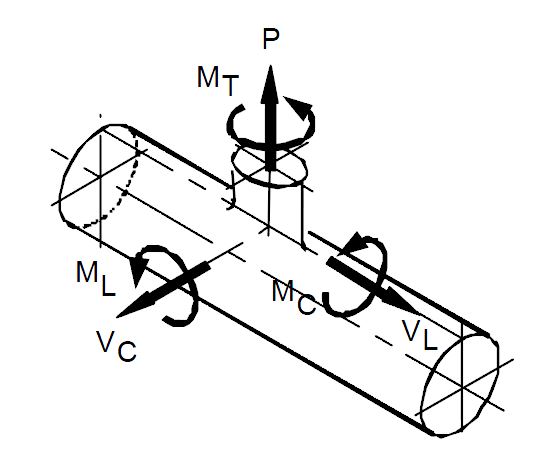

Nozzle Loads DSM:
-->
Caesar II eql-file K=1 :
-->
Caesar II eql-file K=1.25 :
-->
Nozzle Loads :
-->
INFO :
-->
Reset
