Flange-Bolt-Moment-Calculations
-AKZO-
INPUTS
info
Core Diameter Bolt [Dk_b]:
mm
-?-
--
Yield Strength bolt [Re] :
N/mm
2
-?-
Inaccuracy factor [ν]:
-
-?-
friction-coefficient [μ] :
-
-?-
Number of bolts [n_b] :
-
-?-
Diameter active sealcircle [Dg] :
mm
-?-
Width seal [b_g] :
mm
-?-
Calculate
OUTPUTS
info
Area core bolt [Ak_b] :
mm
2
.
-?-
Tightness Force [Fa] acc. to Re:
N
-?-

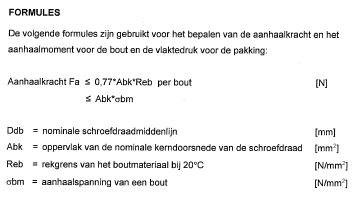

formula
Tightness Moment [Ma] acc. to Re :
Nm
-?-
formula1
Surface pressure [σv] acc. to Re :
N/mm
2
-?-
Tightness Force [Fa] acc. to formula:
N
-?-
formula2
Tightness Moment [Ma] acc. to formula :
Nm
-?-
Tightness strain of bolt [σv] acc. to formula :
N/mm
2
-?-
ASME B16.5-2009 :
pdf --->
ASME B16.5-2009 :
www --->
Reset
