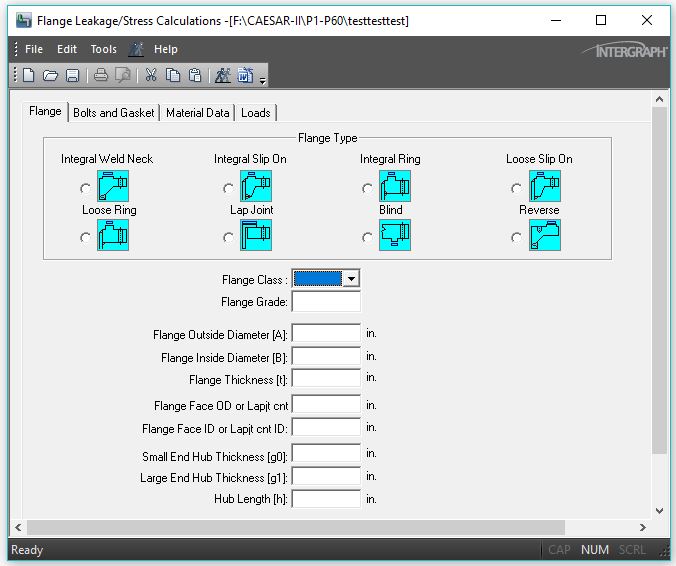

C2-Flange-Leakage-Stress-Calculations at CAESAR II

1e Tab Flange-Leakage-Stres Calc C2
Link-->-C2-User Guide


INPUTS info
[A] Flange Outside Diameter (= O = ASME) : mm -ASME-
[B] Flange Inside Diameter [B = ASME = (1) = Lynco] : mm -Lynco- -Convert-
OD hub MIN (A_h = ASME) : mm -ASME-
OD hub MAX (X = ASME) : mm
Thickness of facing : mm
[t] Thickness of Flange [= t_f = ASME] : mm
Length through Hub [Y = ASME] : mm
INTERPOLATION
Temperature Tx (interpolation Table C-6): dgr F Convertor-C-F
1. Temperature T1 (at E-modulus 1 acc.to Table C-6): dgr F
1. E-modulus 1 at T1 acc. to Table C-6: Msi Table C-7
2. Temperature T2 (at E-modulus 2 acc. to Table C-6): dgr F
2. E-modulus 2 at T2 acc. to Table C-6: Msi

OUTPUTS info
Small End Hub Thickness [g_0] : mm Plot --->
Large End Hub Thickness [g_1] : mm
Total Flange Height : mm
Hub Length [h] : mm
Hub Slope : 1 op ?
E-modulus at Tx : Msi psi--> psi-->
E-modulus at Tx : N/mm2
